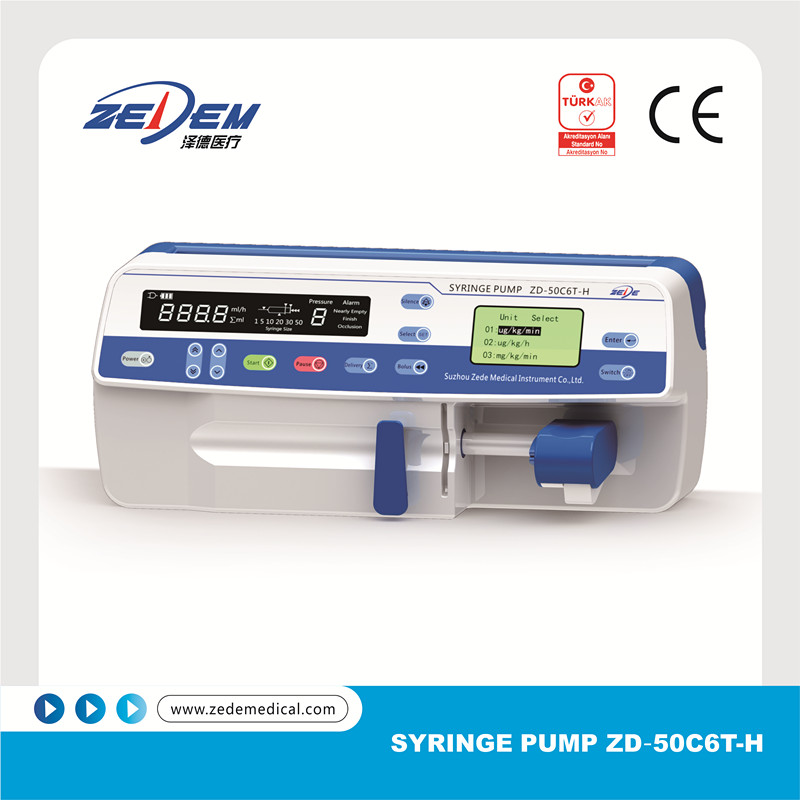

Syringe pump, Zede zd-50c6t-h
Parameter
Syringe Size: 5ml, 10ml, 20ml, 30ml, 50ml ( optional: 1/2/3mL )
Flow Rate: 0.0-150ml/h (0.1ml/h increment) 5ml syringe
0.0-300ml/h (0.1ml/h increment) 10ml syringe
0.0-600ml/h (0.1ml/h increment) 20ml syringe
0.0-900ml/h (0.1ml/h increment) 30ml syringe
0.0-1200ml/h (0.1ml/h increment,1ml/h increment if over 1000ml/h) 50ml syringe
Precision: ?±2%?mechanism?±1%?
Inquiry of total volume: 0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml)
VTBI: 0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml)
Occlusion Value High?H??800±200mmHg ?106.7±26.7kPa)
Centre?C??500±100mmHg ?66.7±13.3kPa)
Low?L??300±100mmHg ?40.7±13.3kPa)
Alarm: Remind alarm, Occlusion alarm, Near empty alarm, Empty alarm, syringe barrel unlock alarm, syringe plunger disengage alarm, syringe flange disengage alarm, AC power failure, Low battery alarm, Battery empty alarm, VTBI finish reminder, infusion tube disconnect(option)
Power AC?100V-240V±10%? 50Hz-60Hz±1Hz
Built-in Battery?DC15V Ni-MH battery. Built-in battery can run for 10 hours at 5ml/h.
?It can be replaced by lithium ion battery pack if necessary.?
DC?DC15V?vehicle power
Running Environment: Temperature?+5?-+40?
Relative Humidity?20%-90%
Atmosphere Pressure?860hPa-1060hPa
Transport And Storage Environment: Temperature?-20?-+55?
Relative Humidity?10%-93%
Atmosphere Pressure?500hPa-1060hPa
Electric Safety Classification: Class I, CF type?Built-in battery?Continuous operation equipment
Water Proof Level: IPX4
Net Weight: 2.3kg(include fastener)
Dimension: 320mm?W?× 132mm?H?× 138mm?D?
Function:
KVO rate
Safety lock for PURGE/BOLUS
All brands of syringes are available
Preset occlusion detection pressure level
Preset Volume To Be Infused
Varied video and audio alarm
RS232 interface
4500 history log
Calculation /Gradient Mode Standby function
Safety lock for flow rate adjust
Automatic syringe size detection
Bolus release
Inquiry of total infused volume
Power indicator
Vehicle Power
Double CPU
With LCD as a aid to display
Advanced Function:
Adjust occlusion detection pressure
Adjust KVO rate
Preset maximum limit amount of single bolus
Preset volume of alarm voice Calibrate parameter of syringe
Preset residual amount of solution
Preset maximum value of flow rate
Preset system time
