Description
NESCO Anti-Decubitus Mattress N-5600
Advanced Alternating-Pressure Support for Homecare and Clinical Use
The NESCO Anti-Decubitus Mattress N-5600 is an alternating-pressure mattress system designed to support patients who require prolonged bed rest and advanced pressure-injury care. Its individual air cells inflate and deflate in a controlled cycle to help redistribute body pressure, improve air circulation, and provide a more comfortable resting surface.
The system is equipped with a practical pump featuring adjustable pressure settings, static mode, alarm reset, and a quiet, energy-efficient operation. It is suitable for homecare, hospitals, clinics, rehabilitation centres, and long-term care facilities.
Key Features
- Alternating-pressure air-cell system
- Designed to support stage 1–3 pressure-injury care
- Helps distribute body pressure more evenly
- Supports the reduction of concentrated pressure points
- Promotes airflow around the patient’s skin
- Comfortable, stable, and secure for everyday use
- Quiet and energy-efficient pump operation
- Adjustable normal and low-pressure settings
- Static operating mode
- Alarm reset function
- Quick connector with transport function
- CPR quick-release feature for emergency deflation
- Includes one spare air cell
Suitable For
- Long-term bedridden patients
- Elderly users with limited mobility
- Post-operative recovery
- Stroke and rehabilitation patients
- Patients requiring pressure-injury prevention support
- Homecare and family-assisted care
- Hospitals, clinics, nursing homes, and rehabilitation facilities
The appropriate mattress setting and pressure-care plan should be determined by a qualified healthcare professional.

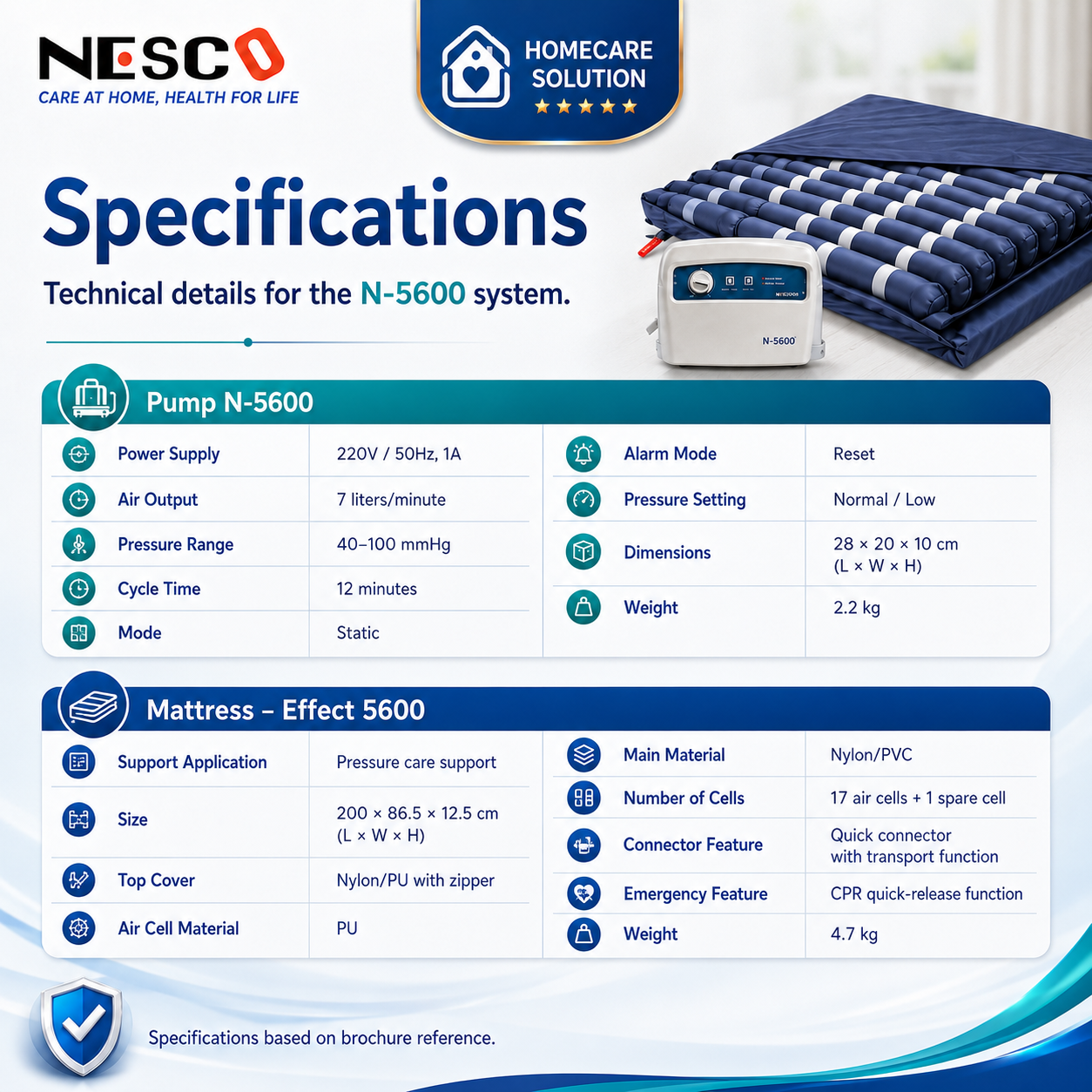

Pump Specifications
- Pump model: N-5600
- Power supply: 220 V, 50 Hz, 1 A
- Air output: Approximately 7 L/min
- Pressure range: 40–100 mmHg
- Cycle time: Approximately 12 minutes
- Operating mode: Static mode available
- Alarm mode: Reset
- Pressure settings: Normal and low
- Pump dimensions: 28 × 20 × 10 cm
- Pump weight: Approximately 2.2 kg
Mattress Specifications
- Mattress model: Effect 5600
- Application: Advanced pressure-care support
- Mattress dimensions: 200 × 86.5 × 12.5 cm
- Top-cover material: Nylon/PU with zipper
- Air-cell material: PU
- Main material: Nylon/PVC
- Air cells: 17 cells plus 1 spare cell
- Connector: Quick connector with transport function
- Emergency feature: CPR quick-release function
- Mattress weight: Approximately 4.7 kg
General Setup Guide
- Place the air mattress over a standard bed mattress with the tubes positioned near the foot of the bed.
- Secure the mattress so it lies flat without folds or twisting.
- Connect the air tubes firmly to the pump.
- Position or hang the pump securely on the bed frame.
- Turn on the pump and allow the mattress to inflate completely.
- Select the appropriate pressure setting according to the patient’s condition, weight, and professional care guidance.
- Make sure the tubes are not kinked, trapped, or disconnected.
- Check mattress inflation and patient comfort regularly.
Cleaning and Maintenance
Clean the mattress and cover using a soft cloth with an appropriate mild cleaning solution. Keep the pump dry and away from liquids. Do not use sharp objects, abrasive cleaners, or excessive heat.
Regularly inspect the air cells, cover, tubing, connectors, CPR valve, and pump for leakage, damage, or reduced performance.
Ministry of Health Registration
Indonesia Ministry of Health AKL 20902917876
Important Information
The N-5600 is supportive pressure-care equipment and does not replace regular repositioning, skin inspection, wound treatment, nutrition management, or professional medical care. Use the product according to the instructions and the recommendations of a doctor, nurse, or other qualified healthcare professional.
NESCO Anti-Decubitus Mattress N-5600 — advanced pressure support for safer, calmer, and more comfortable patient care.
